Restricted Barycentric Subdivision (Vietoris-Rips)
The Restricted Barycentric Subdivision Homology of a hypergraph is the homology of the clique complex of the simple graph \(G\) such that
the vertices of \(G\) are the hyperedges of the hypergraph
the edges of \(G\) are the pairs \(\{e,h\}\) such that \(e \subseteq h\) or \(h \subseteq e\)
OAT doesn’t offer a specialized function to compute this homology, but it does allow one to compute the persistent homology of any weighted graph. So, as a work around, we assign weight 0 to every edge of G and compute its persistent homology.
This notebook shows how to implement this strategy.
import oat_python as oat
import copy
import plotly.graph_objects as go
import numpy as np
import networkx as nx
import hypernetx as hnx
import sklearn
Define a hypergraph
The hypergraph has edges labeled “A”, “B”, “C”, “D”, with the following vertices:
E = { "A": ["x"], "B": ["y"], "C": ["x","y","z",], "D": ["x","y","w",], }

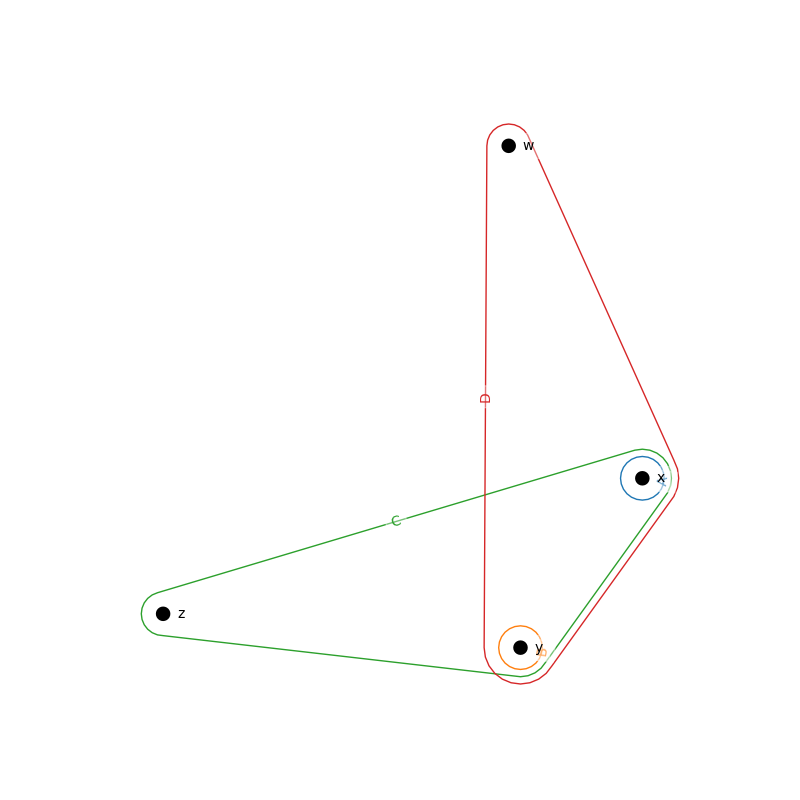

Plot the hypergraph using HyperNetX
hnxgraph = hnx.Hypergraph(E)
hnx.drawing.draw(hnxgraph)
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:150: DeprecationWarning:
misc_props_col and misc_cell_props_col will be deprecated; all public references to these arguments will be removed in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/hypergraph.py:563: FutureWarning:
This method or function will be deprecated in a future release. Public references to this method or function will be removed from the Hypergraph API in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:150: DeprecationWarning:
misc_props_col and misc_cell_props_col will be deprecated; all public references to these arguments will be removed in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/hypergraph.py:563: FutureWarning:
This method or function will be deprecated in a future release. Public references to this method or function will be removed from the Hypergraph API in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
Compute homology
# convert to a list of edges
G = list( E.values() )
# graph representing the edge containment poset (forgetting direction)
containment = oat.hypergraph.edge_containment_graph_symmetrized( G )
# graph whose edges form the set complement of the containment graph
anticontainment = nx.complement( containment )
# adjacency matrix of the anticontainment graph
anti_adjacency = nx.adjacency_matrix( anticontainment ).todense()
dissimilarity_matrix = oat.dissimilarity.sparse_matrix_for_dense(
dissimilarity_matrix = anti_adjacency,
max_dissimilarity = 0.5
)
# decomposition boundary matrix
decomposition = oat.core.vietoris_rips.BoundaryMatrixDecomposition(
dissimilarity_matrix = dissimilarity_matrix,
max_homology_dimension = 1,
)
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/checkouts/stable/examples/dowker/plot_rbs_homology.py:57: FutureWarning:
adjacency_matrix will return a scipy.sparse array instead of a matrix in Networkx 3.0.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/networkx/linalg/graphmatrix.py:173: DeprecationWarning:
The scipy.sparse array containers will be used instead of matrices
in Networkx 3.0. Use `to_scipy_sparse_array` instead.
The persistent homology dataframe contains the persistent homology of the Vietoris-Rips complex. Because every edge in the underlying graph has weight 0, this is the same as the RBS homology of the hypergraph. The dataframe contains a cycle basis for the RBS homology, in which each cycle technically represets a homology class that is born at filtration parameter 0 and never dies.
persistent_homology = decomposition.persistent_homology_dataframe(
return_cycle_representatives = True,
return_bounding_chains = True,
)
persistent_homology
Inspect a cycle representative
cycle = persistent_homology["cycle_representative"][1]
cycle
Relabel each vertex
Recall that a vertex in the Vietoris-Rips complex corresponds to a hyperedge in the initial hypergraph. These hyperedges have labels “A”, “B”, “C”, “D”, so lets relabel the vertices in the cycle representative accordingly.
Recall that each vertex in RBS homology represents an edge in the reduced hypergraph (which corresponds to a set of hyperedges in the initial hypergraph). Here we relabel each vertex with one of the edges that maps to it.
original_edge_labels= { p: k for p,k in enumerate(E.keys()) }
cycle = copy.deepcopy(persistent_homology["cycle_representative"][1])
cycle["simplex"] = [ [original_edge_labels[x] for x in simplex] for simplex in cycle["simplex"] ]
cycle
Plot a cycle representative
edges = persistent_homology["cycle_representative"][1]["simplex"] # the edges in the cycle
points = oat.plot.vertex_embedding_for_simplices(
simplices = edges.tolist(),
dimension = 3,
)
fig = oat.plot.fig_3d_for_simplices(
edges,
points=points,
kwargs_points = dict(
mode="markers+text",
text= [ val for val in original_edge_labels.values() ],
marker_size=8,
textfont_size=18,
),
)
fig.update_layout(template="plotly_dark")

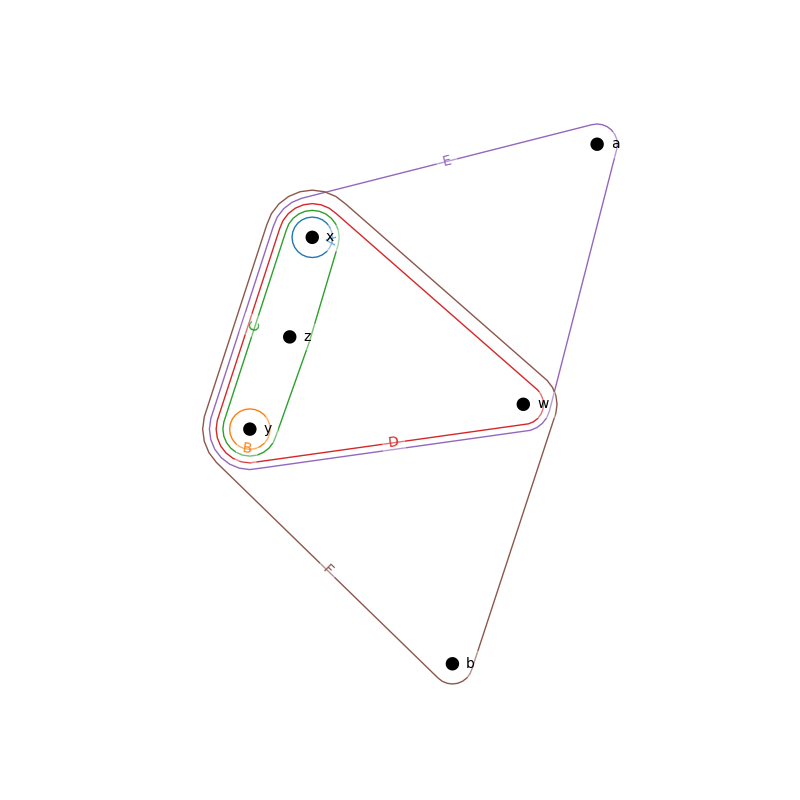

Suspend and repeat
F = { "A": ["x"], "B": ["y"], "C": ["x","y","z",], "D": ["x","y","w",], "E":["x","y","z","w","a"], "F":["x","y","z","w","b"] }
hnxgraph = hnx.Hypergraph(F)
hnx.drawing.draw(hnxgraph)
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:150: DeprecationWarning:
misc_props_col and misc_cell_props_col will be deprecated; all public references to these arguments will be removed in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/hypergraph.py:563: FutureWarning:
This method or function will be deprecated in a future release. Public references to this method or function will be removed from the Hypergraph API in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:150: DeprecationWarning:
misc_props_col and misc_cell_props_col will be deprecated; all public references to these arguments will be removed in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/hypergraph.py:563: FutureWarning:
This method or function will be deprecated in a future release. Public references to this method or function will be removed from the Hypergraph API in a future release.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/hypernetx/classes/entityset.py:618: FutureWarning:
The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
convert to a list of edges
G = list( F.values() )
# graph representing the edge containment poset (forgetting direction)
containment = oat.hypergraph.edge_containment_graph_symmetrized( G )
# graph whose edges form the set complement of the containment graph
anticontainment = nx.complement( containment )
# adjacency matrix of the anticontainment graph
anti_adjacency = nx.adjacency_matrix( anticontainment ).todense()
dissimilarity_matrix = oat.dissimilarity.sparse_matrix_for_dense(
dissimilarity_matrix = anti_adjacency,
max_dissimilarity = 0.5
)
# decomposition boundary matrix
decomposition = oat.core.vietoris_rips.BoundaryMatrixDecomposition(
dissimilarity_matrix = dissimilarity_matrix,
max_homology_dimension = 2,
)
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/checkouts/stable/examples/dowker/plot_rbs_homology.py:151: FutureWarning:
adjacency_matrix will return a scipy.sparse array instead of a matrix in Networkx 3.0.
/home/docs/checkouts/readthedocs.org/user_builds/oat-python/envs/stable/lib/python3.9/site-packages/networkx/linalg/graphmatrix.py:173: DeprecationWarning:
The scipy.sparse array containers will be used instead of matrices
in Networkx 3.0. Use `to_scipy_sparse_array` instead.
The persistent homology dataframe:
persistent_homology = decomposition.persistent_homology_dataframe(
return_cycle_representatives = True,
return_bounding_chains = True,
)
persistent_homology
A cycle representative:
cycle = persistent_homology["cycle_representative"][1]
cycle
A cycle with reverted vertex labels
original_edge_labels = { p: k for p,k in enumerate(F.keys()) }
cycle = copy.deepcopy(persistent_homology["cycle_representative"][1])
cycle["simplex"] = [ [original_edge_labels[x] for x in simplex] for simplex in cycle["simplex"] ]
cycle
Plot the cycle representative
triangles = persistent_homology["cycle_representative"][1]["simplex"] # the edges in the cycle
points = oat.plot.vertex_embedding_for_simplices(
simplices = triangles.tolist(),
dimension = 3,
)
fig = oat.plot.fig_3d_for_simplices(
triangles,
points=points,
kwargs_points = dict(
mode="markers+text",
text= [ val for val in original_edge_labels.values() ],
marker_size=8,
textfont_size=18,
),
)
fig.update_layout(template="plotly_dark")
Make triangles opaque and grey, for a different style.
The trace for triangles is stored in fig.data[2]
fig.data[2].update( color = 'grey', opacity = 1.0)
fig
Total running time of the script: (0 minutes 0.304 seconds)
